Nua Architecture

C4 Diagrams

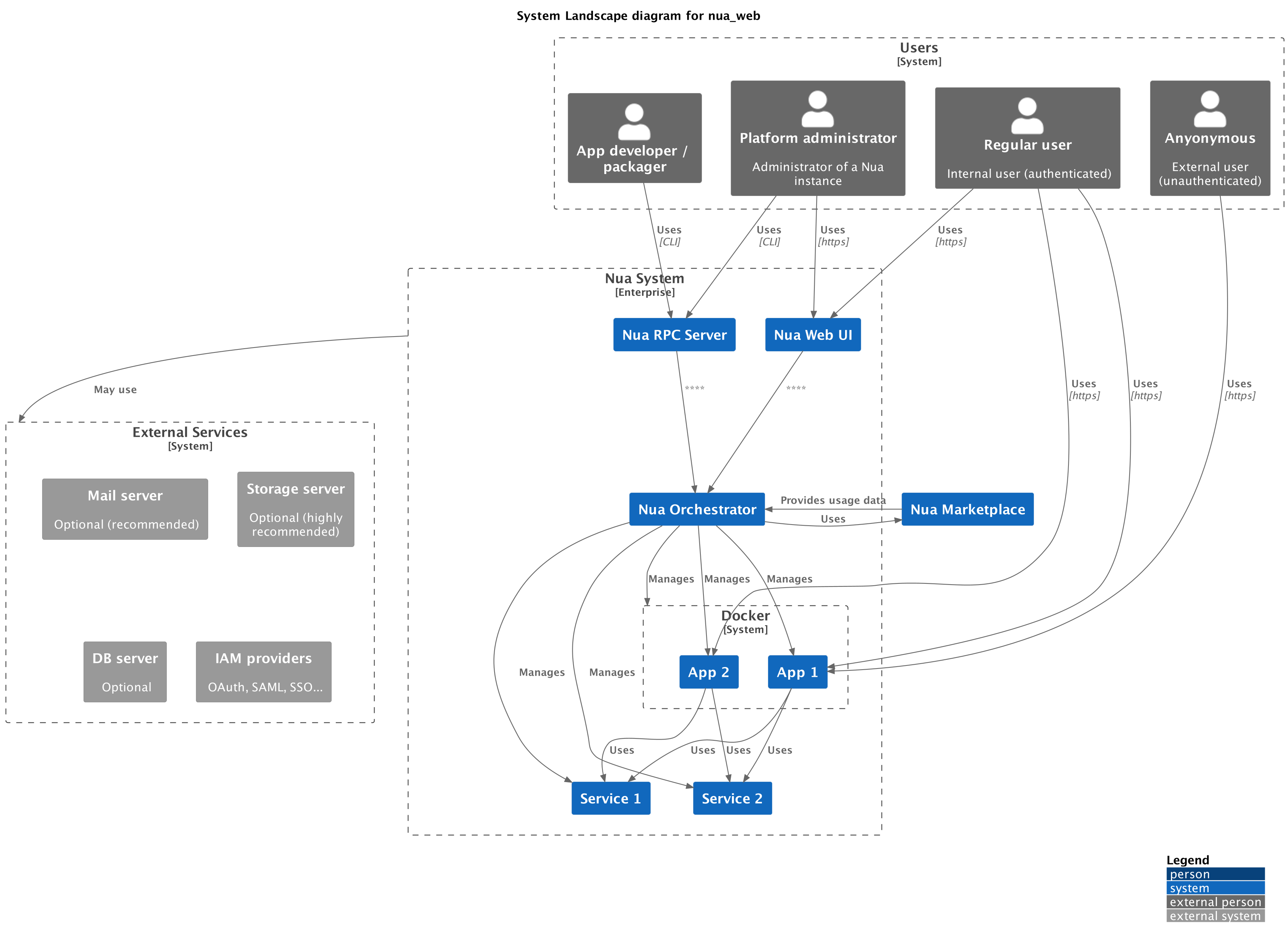

Context diagram (level 1)

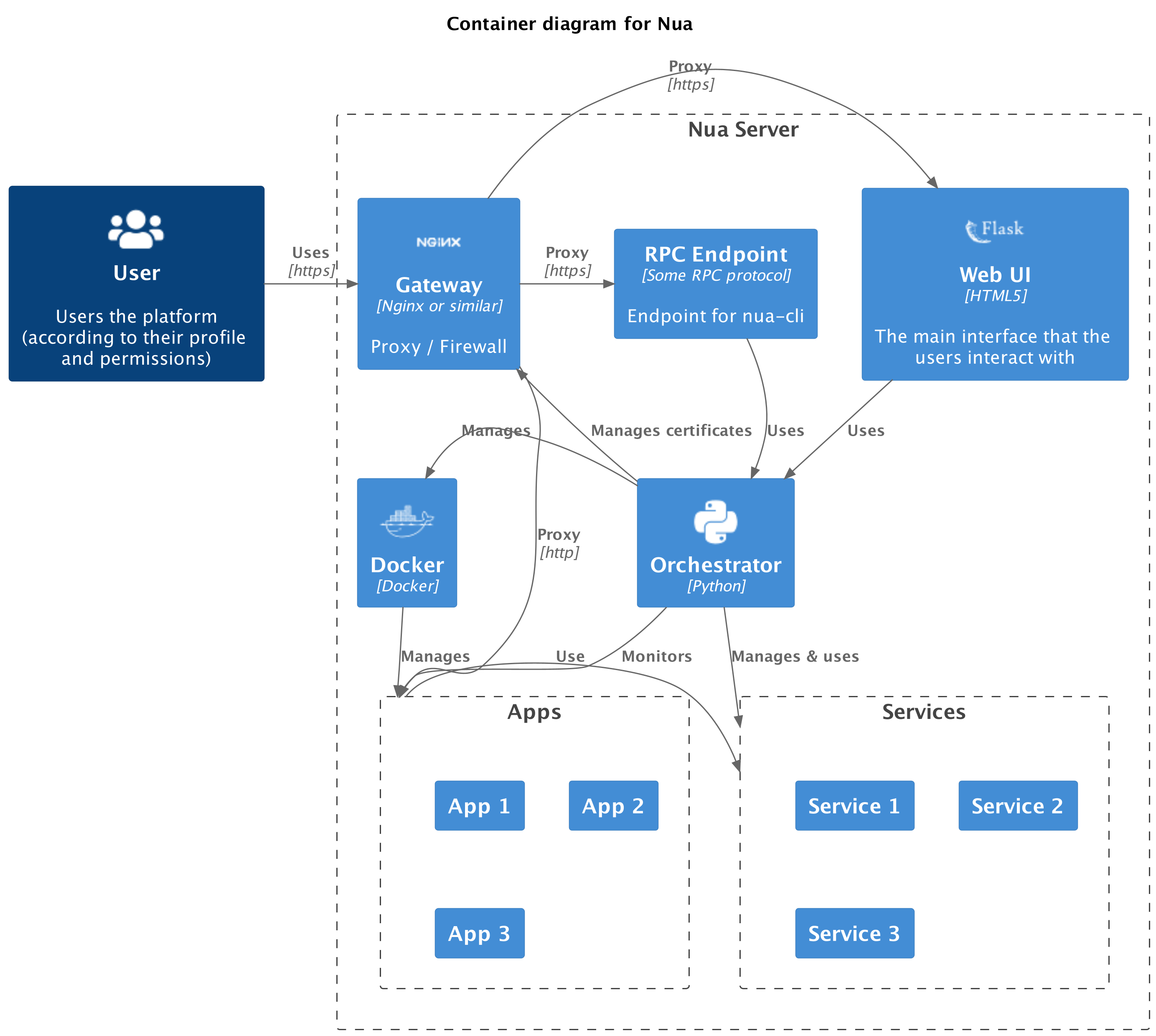

Container diagrams (level 2)

Components

The main components are:

• The builder
• The orchestrator

Sub-project structure

The Nua project is (currently) structured as as a monorepo with several sub-projects.

The subprojects are structured as follows:

• nua-lib: common code shared by all subprojects.
• nua-agent: the build agent that runs in the build container.
• nua-build: the builder that orchestrates the build.
• nua-orchestrator: the orchestrator.
• nua-server: the web UI.

The dependencies between the subprojects are as follows:

• nua-lib doesn’t depend on any other subproject.
• nua-agent should depends only on nua-lib.
• nua-build should depends only on nua-lib.
• nua-orchestrator should depends only on nua-lib.
• nua-server doesn’t depend on any other subproject (could depend on nua-lib). Also could be merged with nua-orchestrator someday.
• nua-cli doesn’t depend on any other subproject (could depend on nua-lib).
